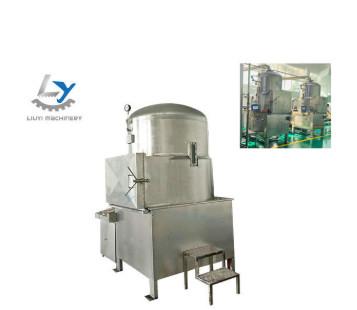

Stainless Steel 304 Vacuum Mushroom Frying Equipment Continuously Oil Filtration
- The Principle of Vacuum Fried Mushroom chips
Liuyi vacuum fryer adopts the most advanced and unique vacuum frying process. The equipment design is simple, fully automatic computer control, small footprint and easy to clean. The frying machine has a large amount of one-time feeding, high output. It only needs short processing time to make sure the perfect color and energy saving.
Our engineer will go to your place for installation and training. We have a complete process for the service.
- Technology Data of Liuyi Vacuum Fryer
| SPECIFICATIONS |
| Model | VF-LY50 | VF-LY100 | VF-LY200 |
| Raw Material Input | 30kg-50kg | 80kg-100kg | 170kg-200kg |
| Machine Material | food grade SS304 | food grade SS304 | food grade S304 |
| Basket size | Φ600mm*H500mm | Φ750mm*H530mm | Φ1200mm*H600mm |
| L*W*H | 1400*3500*2500mm | 1800*4000*2900mm | 2500*4500*3100mm |
| Oil Volume | 300-500kg | 600-800kg | 1000-1200kg |
| Vacuum Degree | -0.095mpa~-0.098mpa | -0.095mpa~-0.098mpa | -0.095mpa~-0.098mpa |
| Steam Pressure | 4-8kg | 4-8kg | 4-8kg |
| Frying Temperature | 75-110℃ | 75-110℃ | 75-110℃ |
| Oil Pump | 3kw | 5.5kw | 7.5kw |
| Vacuum Pump | 7.5kw | 11kw | 15kw |
Catalog for Automatic Vacuum Frying Machine.pdf
1. Equipment installation and commissioning site
We will be responsible for the installation and commissioning of the equipment. After receiving the notification of your commission, we will immediately arrange the personnel to wire and debug the equipment.
2. Operator training
Since the equipment is self-wired and commissioned, you can learn the mechanical working principle of the equipment and the maintenance factors during the operation under the guidance of us. We will also teach you the use of equipment theory and practical experience to produce qualified products.
3. Equipment warranty
The warranty of the equipment is one year. If the equipment is damaged due to non-human factors within 1 year, we will be responsible for maintenance.
4. Technical service
Any technical problems encountered during use, we will provide technical services free of charge.
5. Equipment maintenance after the warranty period
For any problems happened after the warranty period. We will provide high-quality repair services and original accessories, and the cost will be implemented at a reasonable and good price.
